Automann 462.ES2238R Tie Rod End

Description

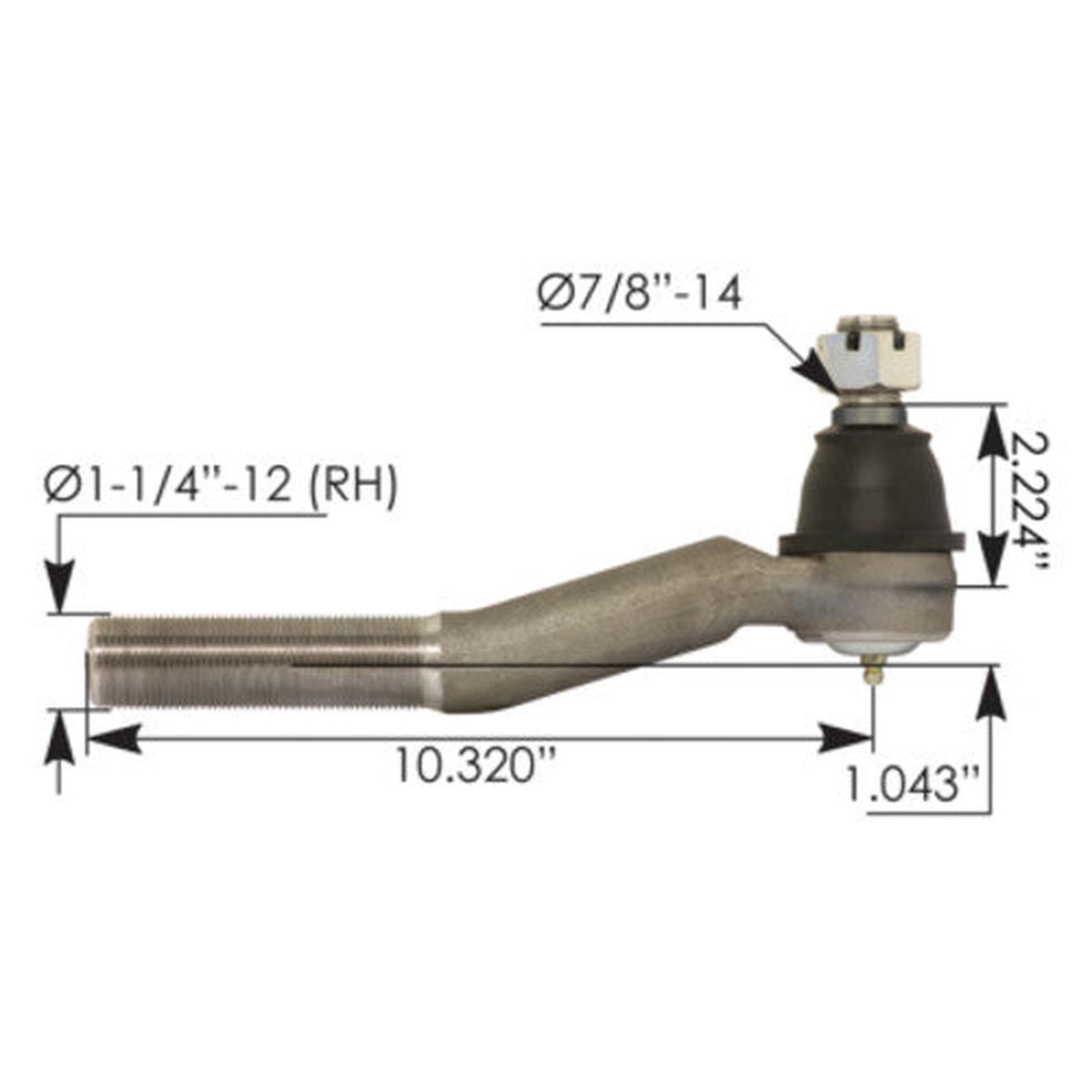

Center to End (B) : 10.320
Drop (H) : 1.043
Height of Taper (C) : 2.224
Rod OD (A) : 1-1/4
Stud Thread (G) : 7/8-14
Taper Length (F) : 1.080
Taper Major Dia. (E) : 1.102
Taper Minor Dia. (D) : 0.967
Thread Pitch & Direction : 12 (RH)
Type : 4

• Part number: 462.ES2238R
• OE MFG: Bluebird Bus
• OEM Reference: 118433
• Cross Reference: BLUEBIRD : Bus 118433; BLUEBIRD BUS : 118433; FREIGHTLINER : 6073382210, 607-338-22-10, A6073382210, P6073382210, P607-338-22-10; GMC : 88936107; HENDRICKSON : 60961138, 66645002, 666452; IHC : 2604283C91; MERITOR : A3144Q1136, A3144R1136, R230138; MOOG : ES800420; SPICER : 462ES2238R, ES2238R, TRE9000R; TRW : ES9138R, L20LV8014A14, L20LV8014A15 |
